Frequency Separation Made Easy
To put it as easily as possible, frequency separation is a Photoshop technique which separates the texture of an image from its shape creating two layers, one storing color and luminosity information and the other one, storing the detail. Activating a curve adjustment layer, restricted to operate on the high frequency layer, you can change the detail level of the image by steepening or flattening the curve. You will also be able to easily clone over defective parts with no visible side-effects. Frequency Separation Made Easy.
What is Frequency Separation
We should call this technique Spatial Frequency Separation because it affects space, not time. For practical reason we’ll call it simply Frequency Separation.
Usually one encounters frequency separation for the first time in the field of beauty retouch. Here how it works.
With a relatively complex routine the user manually creates in Photoshop two layers. The first one, called “Low Frequency”, looks like a blurred version of the image stores the shape and the the color information. The second one, called “High Frequency” is a flat, grayish thing with basically no contrast but have a lot of the detail. The two layers are grouped. Usually this is called “pyramid” and the two layers together give the same result of the original.

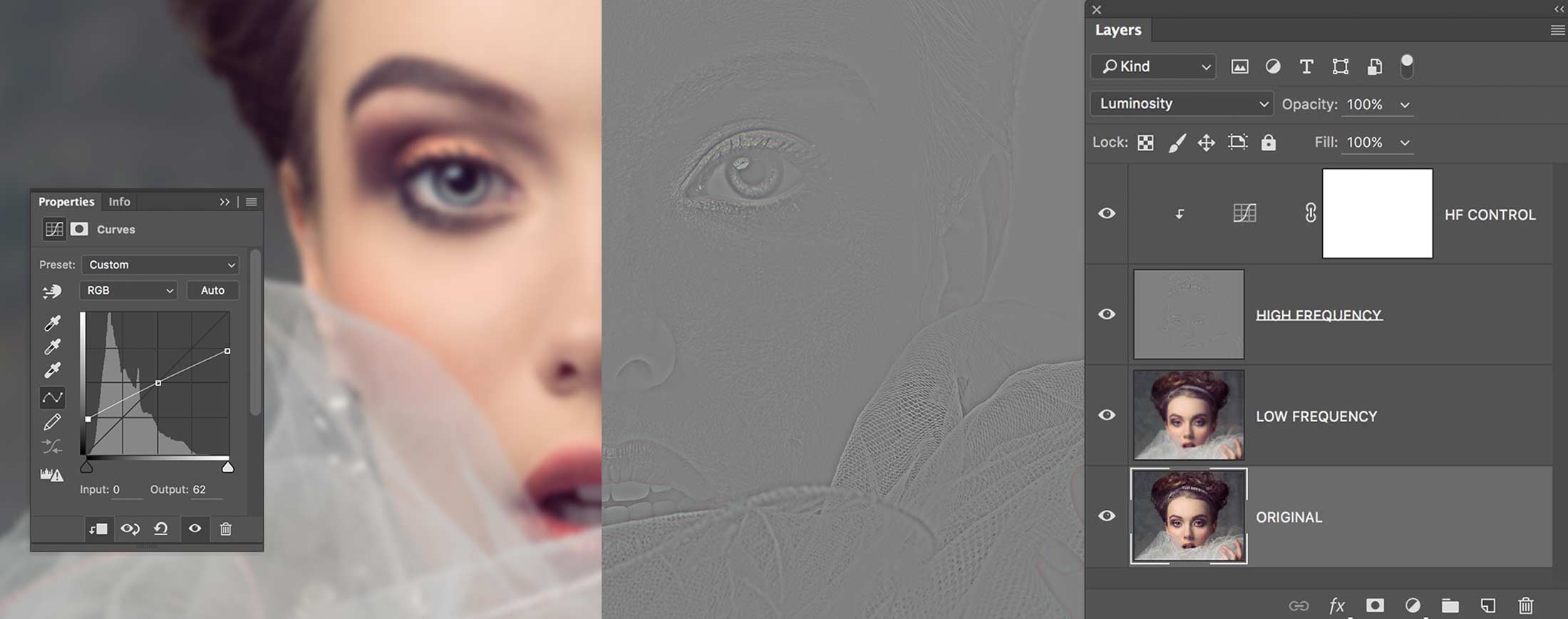

In the main image above you may see a detail on an high frequency layer rich of detail and the pyramid (group) of layers.
Low frequency blurred layer
High frequency layer
The benefits of Frequency Separation
We just learned that the stack of the two layers give the same result of the original. So, why create this two layers? Well! For many reasons.
1. You may clone on the high frequency layer to get rid of wrinkles and skin thin imperfections.
2. You may select parts of the low frequency layer an blur them to get rid of blemishes, skin redness or unpleasant reflections on the skin.
3. Adding a curve adjustment layer, set in luminosity blending mode, with middle point on 128 and restricted to operate on the high frequency layer, you may change the detail level of the image by steepening or flattening the curve. This may be done locally using a layer mask.
Flat curve clipped to the High Frequency layer: blurred
Steep curve applied on the High Frequency layer: sharper
The Limits of This Conventional Use of Frequency Separation
This is how in 90% of cases Frequency Separation technique is used. To us there are many limitations.
1. The two layers must be created on one specific frequent band that may work properly in some parts of the image and not on others.
2. This powerful technique is virtually used in the field of beauty retouch only, but it’s much, much more versatile.
3. You may duplicate the routine using different frequency bands but it’s really complex and time demanding.
4. This workflow requires a lot of time.
5. It’s great to remove imperfections, but not to add sharpness and local contrast on different frequency bands. In other words it’s really complicate boost and cut detail at the same time, that it’s where this techniques should excel.
6. It’s not used to add a special mood to images.
A Different Approach. Frequency Separation With Sliders
Given the potential of Frequency Separation, we wondered if it was possible to get more out of this technique, working on different bands covering from higher to lower frequencies, while reducing the amount of work required through a live preview and a partial automatization. After a year of hard work by our developers, the answer was this plugin for Photoshop.
Wow! Frequency Equalizer does just that:under the hood it decomposes your image in five different frequency bands and allows you to adjust them individually, exactly as described in the page and video, but there are four more frequencies available. But where the decomposed layers are? Well, they’re hidden: you actually manipulate them using the sliders. A boost (upward) corresponds to an enhancement of a given band, a cut (downward) corresponds to a reduction.
The sliders correspond to five spatial frequency bands; left to right, the high frequencies which become progressively lower. If you prefer: detail is on the left, shape is on the right. The intermediate bands work on intermediate scales. Wow! adds style, image sharpness and three-dimensionality together with incredibly smooth transitions.

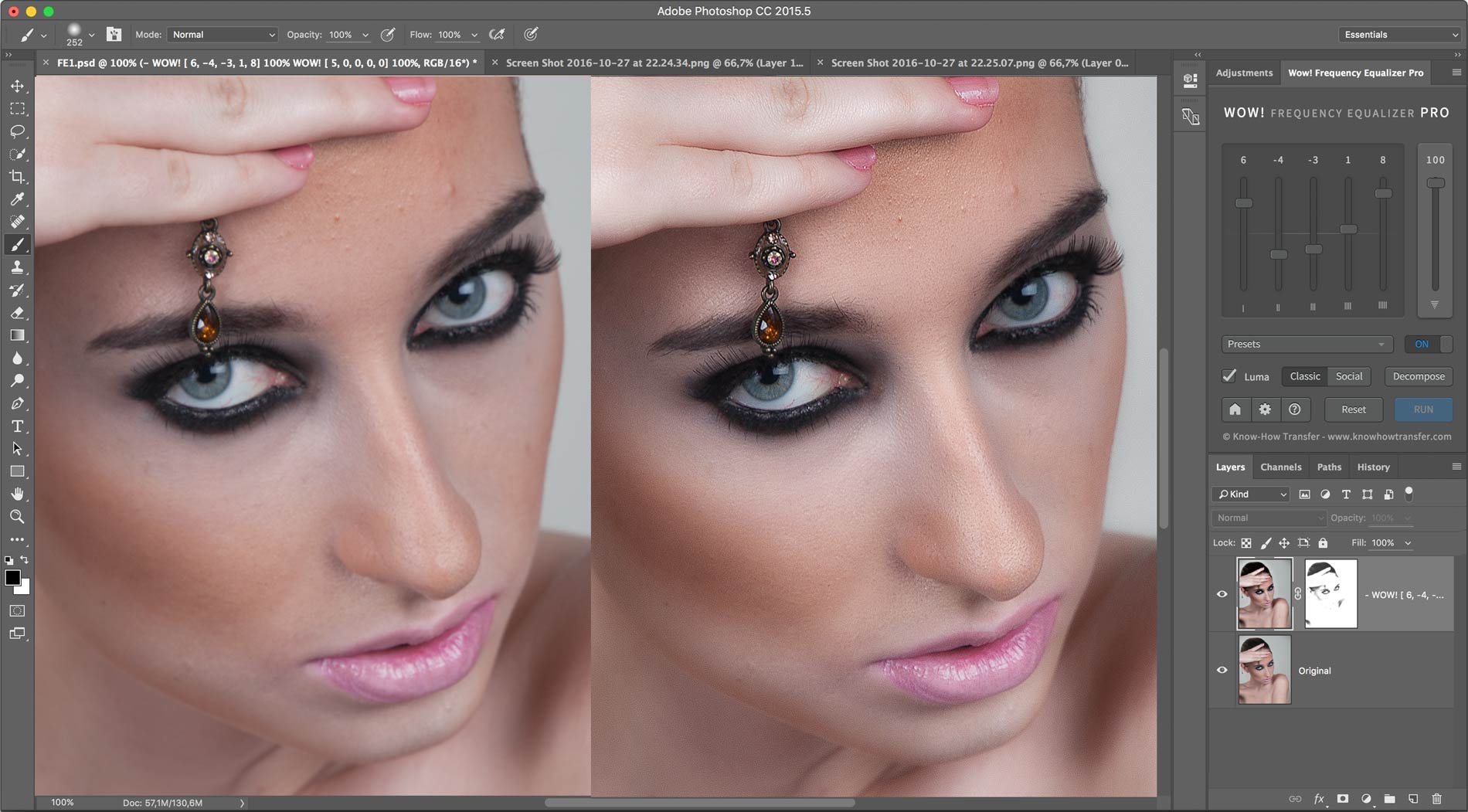

Here below and example of Frequency Equalizer applied in one go. It took three minutes to compare more versions and apply, using Mask Equalizer, a mask to partially protect the shadows. No retouch, absolutely! As you may notice, even if some imperfections still remain there is and important overall improvement. Skin and gradations in general are much more pleasant with no fake effect. Despite of this smoothness the image is more brilliant and sharp where needed.
Stay in touch or sign up The next posts will be focused on frequency separation and retouch with sliders, frequency separation with sliders and decompose, and frequency decompose with lansdcape photography. Don’t miss them.
